32A 18ft Cable Commercial Electric Car Chargers

Ask Lasest Price
Brand Name :	Joint
Model Number :	JNT-EVC10-07C1C-00
Certification :	ETL, CE
Price :	USD 350-450/SET
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	30000 pcs/Month
Delivery Time :	28 Days

Add to Cart

Product Details
Company Profile

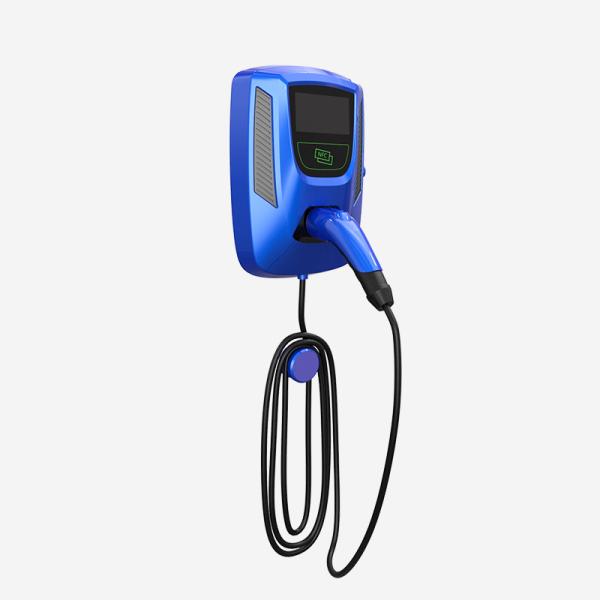

32A 18ft Cable Commercial Electric Car Chargers

AC charger Level 2 UL listed with 32A 18ft cable commercail EV charging station

1.Works with all electric cars, tested on leading EV models: Chevrolet Volt and Bolt EV, Hyundai Kona and Ioniq, Kia NIRO, Nissan LEAF, Tesla models, Toyota Prius Prime, BMW i3, Honda Clarity, Chrysler Pacifica, Jaguar I-PACE, and many more.

2. Quicker charging (30 Amps, 240V, Level 2): 4x faster charging than Level 1, 120V chargers.

3. Easier set-up: Includes convenient mounting bracket, 18ft/25ft charging cable, and NEMA 6-50 plug for use with common dryer outlet.

Series

Model Name	EVC10-03C1C	EVC10-07C1C	EVC10-09C1C	EVC10-11C1C
Input Rating	200-240Vac
Frequency	60Hz
Input Current	16A	32A	40A	48A
Output Current	16A	32A	40A	48A
User Authentication	RFID (ISO 14443)
External	LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal	OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature	-22˚F~122˚F(-30˚C~50˚C)
Humidity	Max. 95% RH
Altitude	≦ 2000m
IP Level	IP65 for box
Dimension(WxDxH)	350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet	18ft charging cable(25ft charging cable optional)
CCID	CCID20
Charging Interface	SAEJ1772
Multiple Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection

Features and advantages

1. Stylish durable design Up to 32A @ 400V Max. ouput power:22kw

2. Network connectivity OCPP 1.6J (2.0 compatible)

3. Type A+DC6mA

4. Waterproof LAN interface

5. IEC 62196-2 charging plug and 5m cable or socket

6. IK08, IP65 for indoor /outdoor

7. 4.3’’ LCD optional

8. 4G SIM card Emergency stop

FAQ

Q1:Are you Trading Company or manufacturer?

A: We are professional design and manufacturer, our factory has been established for 5 years.

Q2:How long is the lead time:

A: The lead time is 7-30 days, it depends on the quantity and production scheduling.

Q3: How long is the warranty time?

A: The warranty time is 3 year.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
