240VAC 7KW Public Electric Car Charging Stations

    Buy cheap 240VAC 7KW Public Electric Car Charging Stations from wholesalers

    Buy cheap 240VAC 7KW Public Electric Car Charging Stations from wholesalers
    • Buy cheap 240VAC 7KW Public Electric Car Charging Stations from wholesalers

    240VAC 7KW Public Electric Car Charging Stations

    Ask Lasest Price
    Brand Name : Joint
    Model Number : EVC10-07C1C
    Certification : ETL, CE
    Price : USD 250-450/SET
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30000 pcs/Month
    Delivery Time : 28 Days
    • Product Details
    • Company Profile

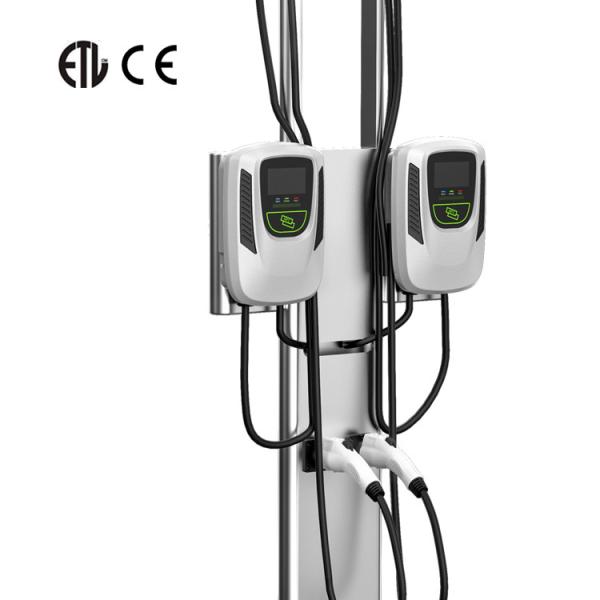

    240VAC 7KW Public Electric Car Charging Stations

    240VAC 7KW Public Electric Car Charging Stations

    Follow these steps for easy charging


    Module 3, 32 Amp electric vehicle (EV) charging station which charges up to 8 times faster than the standard charger which came with your EV. Wall-mounting bracket included. 3-YR warranty included. Stylishly designed and simple to use without requiring an application to run it or home network connection to use it.


    Plug in your vehicle, press a button to select the appropriate start delay avoiding peak utility hours, and then monitor charge state from the comfort of home with vehicle’s application. Customized with any EV including Chevy Bolt, Chevy Volt, Nissan Leaf, Tesla Model S, Tesla Model X, Tesla Model 3, Toyota Prius, Ford Fusion, VW, e-Golf, and many more.


    240VAC 7KW Public Electric Car Charging Stations240VAC 7KW Public Electric Car Charging Stations

    EV Charger Station Features:


    Model NameEVC10-07C1SEVC10-07C1CEVC10-22C1SEVC10-22C1C
    Input Rating230±10%Vac (One Phase)400±10%Vac (Three Phase)
    Frequency50Hz
    Input Current32A
    Output Current32A
    User AuthenticationRFID (ISO 14443)
    ExternalLAN (optional) + 4G (optional) or Wi-Fi (optional)
    InternalOCPP 1.6 JSON (OCPP 2.0 compatible)
    Operating Temperature-22˚F~122˚F(-30˚C~50˚C)
    HumidityMax. 95% RH
    Altitude≦ 2000m
    IP LevelIP 54IP65 for boxIP 54IP65 for box
    Dimension(WxDxH)350x250x175mm (13.8″x9.8″x6.9″)350x250x130mm (13.8″x9.8″x5.1″)350x250x175mm (13.8″x9.8″x6.9″)350x250x130mm (13.8″x9.8″x5.1″)
    Charging OutletOne Socket5M CableOne Socket5M Cable
    RCDRCD TYPE B
    Charging InterfaceType 2 Plug
    Multiple Protection

    Over current, Under voltage, Over voltage, Residual current, Surge protection,

    Short circuit, Over temperature, Ground fault, Current leakage protection
