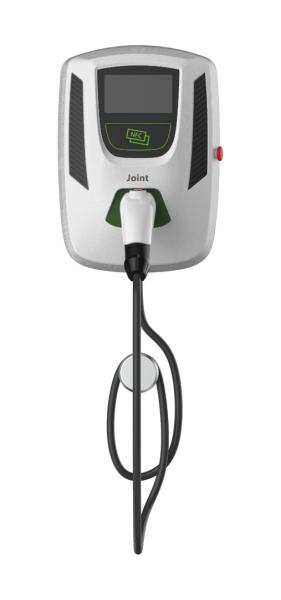

LAN 4G Wi-Fi Optional 60Hz 16A Home EV Charging Station

Ask Lasest Price
Brand Name :	Joint Tech
Model Number :	JNT-EVC10 Series
Certification :	ETL, CE, FCC
Price :	USD 400-6000/SET
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	2000 pcs/Month
Delivery Time :	28 Days

Add to Cart

Product Details
Company Profile

LAN 4G Wi-Fi Optional 60Hz 16A Home EV Charging Station

EV-charger OCPP 1.6 JSON LAN (optional) 4G (optional) or Wi-Fi Multiple Protection

With the growth in both sales and infrastructure, electric vehicles are becoming the leading choice for emission-free transportation. They are transforming the commuting experience by becoming more accessible for everyone, everywhere. From understanding the basics to learning more about EV chargers themselves, you will find everything you need to know about charging electric vehicles and how they are transforming the mobility experience.

EV Charger Station Features:

Input Rating	200-240Vac
Frequency	60Hz
Input Current	16A	32A	40A	48A
Output Current	16A	32A	40A	48A
User Authentication	RFID (ISO 14443)
External	LAN (optional) + 4G (optional) or Wi-Fi (optional)
Internal	OCPP 1.6 JSON (OCPP 2.0 compatible)
Operating Temperature	-22˚F~122˚F(-30˚C~50˚C)
Humidity	Max. 95% RH
Altitude	≦ 2000m
IP Level	IP65 for box
Dimension(WxDxH)	350x250x130mm (13.8″x9.8″x5.1″)
Charging Outlet	18ft charging cable(25ft charging cable optional)
CCID	CCID20
Charging Interface	SAEJ1772
Multiple Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Current leakage protection
