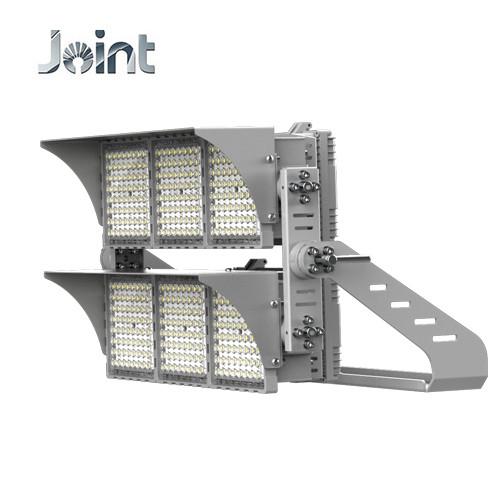

140-160LM/W High Effeciency DLC Listed CE ETL Certified LED Stadium
Flood Light
SLB Features By:
Wattage: 300W - 1700W for variety of sports fileds
2Effiency: up to 160lm/w, DLC premium
Lumen package: 50,000LM - 235,000LM
LED chips: Lumileds 5050, projected L70 ＞ 150,000 hours
Driver: Meanwell or Inventronic
Light distribution: NEMA 2 / 3 / 4 / 5+Asymmetric P45
Intelligent network control system optional
Precision laser aiming for easy installation
P66 housing with tool-less opening for driver maintenance
10 years warranty for housing and leds
LED Stadium Flood Light Specification
| Lamp Body Material | Cold Forging Tech Support Great Heat Dissipation |
| Color Temperature(CCT) | 4000/5000/5700K |
| LED Chips | Lumileds / Osram |
| LED Driver | Meanwell Inventronics |
| EPA | 1.65 |
| Color Rendering Index(Ra) | ≥70 |
| Light Distribution | Nema 2,3,4,5 Optics |
| Lampshade Material | 100% Pure Japan PC |
| Design | Lego or Module Assemble |
| Surge Protection | 20KV |
| IP Grade | IP 66 |
| Ratings | IP66 / IK10 |
| Lamp Luminous Efficiency (lm/w) | Up to 150lm/w DLC premium |
| Operating temperature | -40°F + 104°F (-40°C to +40°C) |
| Installation Height | Up to 10m (33’) |
| LED Power | 300/450/550/750/900/1100/1500/1700W |
| Controller | Light+ Time +Motion Sensor Control |
| Intelligent Dimming+time Control |
| Luminous Flux | 50, 000 – 235,000lm |
| L70@25°C | 100, 000 hours |
Application:
| Baseball / Softball / Football / Basketball / Hockey /Tennis Courts |
| Working life-span | >50,000H |
| Freqency range | 50HZ-60HZ |
| Input Voltage(V): | 100-277V / 277-480V |
What are stadium lights? Stadium floodlights are high-power,
high-output lighting devices that can emit enough light (lumens) to
illuminate large areas, such as sports facilities, playgrounds,
large parking lots, large buildings, and industrial venues. The
most commonly used lighting technologies are light-emitting diodes
(LEDs) and metal halides (MH). High stability flip-chip
supplier shares with you.
In order to correctly review the advantages of LED stadium
floodlights, let us review some definitions:
1. Lumen: Lumen is the international unit of luminous flux, which
is equal to the amount of light emitted per second from a candela
uniform light source in a solid angle unit.
2. Footcandle (Fc): Footcandle is a non-international unit of
illuminance or the illuminance of a Candela light source projected
onto a surface one foot away.
3. Lumens and foot candles: Simply put, lumens measure the light
emitted by a light source, and foot candles measure the amount of
light that reaches an illuminated object (such as the ground,
statue, work area, etc.).
4. Efficacy: How effective is your light source; usually measured
in lumens/watt (LpW).
5. Working time: The service life of the light source is measured
by a certified laboratory and measured in working hours, or how
many hours can be illuminated during its service life.
6. Life Maintenance 70 (LM70): Most LED lighting life is measured
by the LM70 test, which means that when the specified life is
reached, the light will still emit 70% of its initial lumen. For
example, if an LED luminaire is rated for 100,000 lumens, LM70 is
80,000 hours and is used for 10 hours per day (3650 hours per
year), then in 21.92 years, the light will still emit 70,000 lumens
(a 30% reduction).
