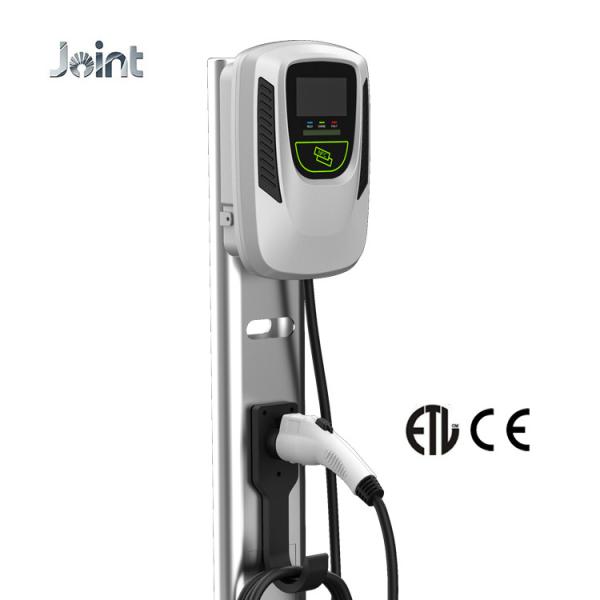

Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station

    Buy cheap Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station from wholesalers

    Buy cheap Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station from wholesalers
    • Buy cheap Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station from wholesalers

    Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station

    Ask Lasest Price
    Brand Name : Joint
    Model Number : EVC10-07C1S
    Certification : ETL, CE
    Price : USD 250-450/SET
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 30000 pcs/Month
    Delivery Time : 28 Days
    • Product Details
    • Company Profile

    Type 2 Socket 7KW 32A 50Hz Electric Vehicle Charging Station

    Type 2 Socket 7KW 32A 240V MID AC Electric Vehicle Charging Station

    Feature:


    Large LCD and long cable: Large LCD to display all the car's data on the charging station during charging. Can see the state of charge, including current, voltage and temperature. The screws are fit into the box so don't have to worry about the screen falling. The 7.5-meter cable leaves enough space between your car and the charging station.


    Balance and safety: The station has a power leveler that balances the station when the multi electric device is in operation. Thus the station can operate under a constant current, avoiding the break and other safety hazards caused by the current instability.


    High compatibility: All our products are CE, the quality is trustworthy. Our EV charger is compatible with most electric vehicles that comply with the IEC 62196-2 standard.


    Electric Vehicle Charging Station​ Specifications:


    Model NameEVC10-07C1SEVC10-07C1CEVC10-22C1SEVC10-22C1C
    Input Rating230±10%Vac (One Phase)400±10%Vac (Three Phase)
    Frequency50Hz
    Input Current32A
    Output Current32A
    User AuthenticationRFID (ISO 14443)
    ExternalLAN (optional) + 4G (optional) or Wi-Fi (optional)
    InternalOCPP 1.6 JSON (OCPP 2.0 compatible)
    Operating Temperature-22˚F~122˚F(-30˚C~50˚C)
    HumidityMax. 95% RH
    Altitude≦ 2000m
    IP LevelIP 54IP65 for boxIP 54IP65 for box
    Dimension(WxDxH)350x250x175mm (13.8″x9.8″x6.9″)350x250x130mm (13.8″x9.8″x5.1″)350x250x175mm (13.8″x9.8″x6.9″)350x250x130mm (13.8″x9.8″x5.1″)
    Charging OutletOne Socket5M CableOne Socket5M Cable
    RCDRCD TYPE B
    Charging InterfaceType 2 Plug
    Multiple Protection

    Over current, Under voltage, Over voltage, Residual current, Surge protection,

    Short circuit, Over temperature, Ground fault, Current leakage protection
